Used Complete Bottling Line for Wine 12.000 bph

About this unit

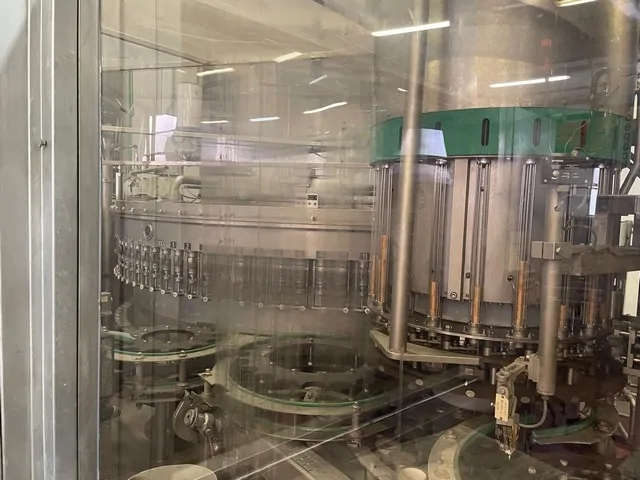

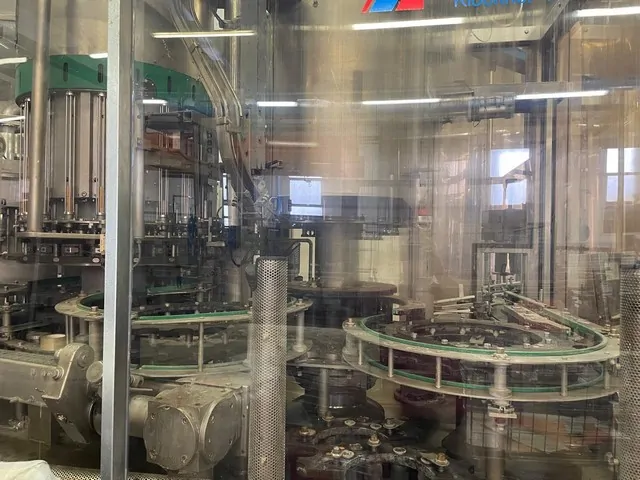

Used Complete Bottling Line for Wine 12.000 bph: Speed: 12.000 BPH with bottles of 0.75 L Depalletizer Keber: Model: Depack 92 Year: 2001 Speed: 65 layers/hour Pallet Storage Inter-layer system Dimension pallet 1000 mm x 1200 mm x 1400 mm Maximum height for pallet 2300 mm Microfiltration Pall: Model: Saso64gnw80j-it Year: 1998 Triblock KHS Model: Innofill um Clockwise directions Speed: up to 33.000 BPH Triblock composed of Rinser 100 clamps Automatic adjustment height Fix nozzles Double treatment Water and Nitrogen Filler 100 valves by gravity Automatic adjustment height tank Mechanicals valves Pre-evacuation Capper 20 heads for natural straight corks Dimension of corks: 25 mm Ø x 48 mm H Vacuum before capping Inert gas injection system before capping Stelvin capper 15 heads Nr. 2 pneumatic cap elevators 3 Inspecrtor FT System: Model: clx-300/ce333 Control presence nr. 3 ejectors on conveyor 1 after Triblock for levels and cap/cork 1 after capsuling for capsules 1 after labeller for lables Capsules distributor WBeer: Long range storage Suitable for PVC capsules Nortan Capsuling machine for PVC Model: Termocap 12 Year: 2002 12 heads Manual adjustment height Labeller Kosme: Modello:

Ask about NP 666
